Cc image.png Mark Qvale - October, 2017




Introduction

This catalog of parts is a compilation of 3D printed parts that can be combined to make many versions of my Pan and Tilts. There are notes on compatibility and some pieces with sketches or more information.

NOTE: Do not mix and match the parts found on this page with any parts found in other catalogs or on the Thingiverse site as they likely will not match up.

Project Pages

You can check these pages for more information on some of my builds.

In this Wiki

Thingiverse

Print Parts

Offset Pan & Tilts

Pan Brackets

 Image Part Number  Part Description Print File Drawing  Compatibility

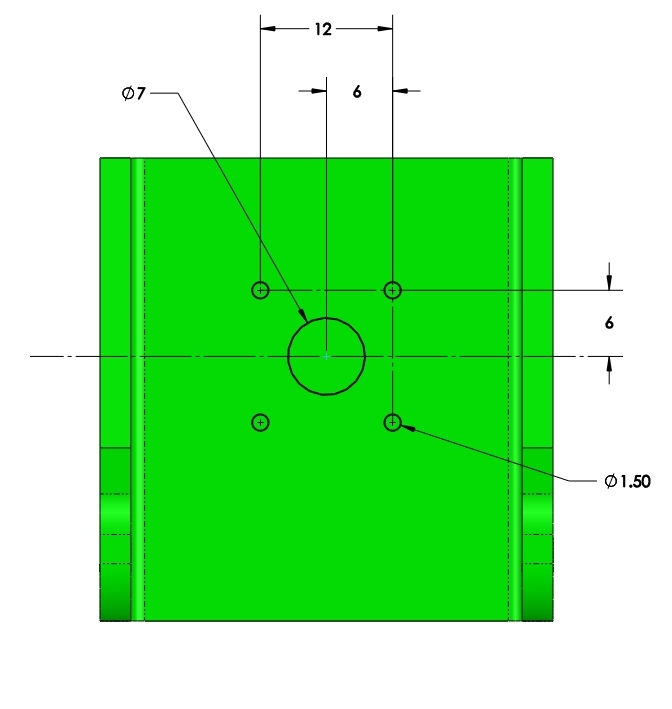

52092sm.JPG  52092  Lower bracket, small  52092.STL  52092_Sketch  Supports all Camera Plates shown in this catalog page. See part sketch for mount hole spacing.

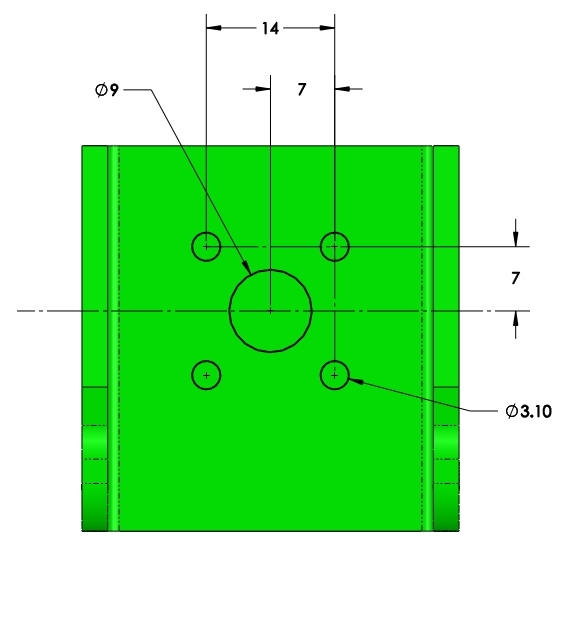

52093sm.JPG  52093  Lower bracket, medium  52093.STL  52092_Sketch  Supports all Camera Plates shown in this catalog page. See part sketch for mount hole spacing.

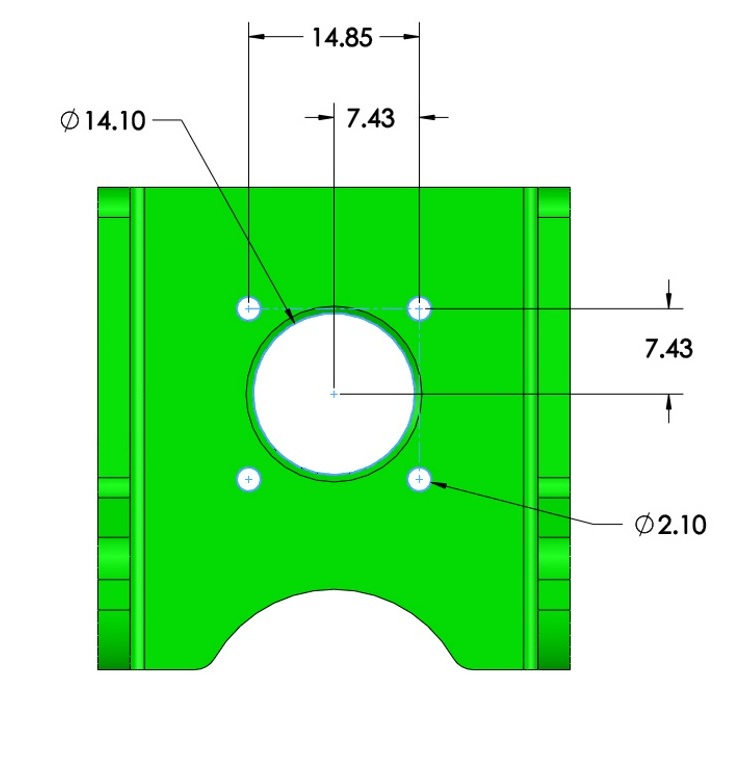

52094sm.JPG  52094  Lower bracket, large  52094.STL  52092_Sketch  Supports all Camera Plates shown in this catalog page. See part sketch for mount hole spacing.


Camera Plates

 Image Part Number  Part Description Print File Drawing  Compatibility
52062sm.JPG  52062  Camera plate, RunCam Split  52062.STL  52062_Sketch  Fits all Pan Brackets shown in this catalog page. Designed for the RunCam Split & Split v2 cameras. Use with 52067 and 52076 for v1 or 52135 for v2
52089sm.JPG  52089  Camera plate, HS1177  52089.STL  52089_Sketch  Fits all Pan Brackets shown in this catalog page. Designed for the HS1177, 26mm x 26mm camera
52090sm.JPG  52090  Camera plate, RunCam Eagle v1  52090.STL  52090_Sketch  Fits all Pan Brackets shown in this catalog page. Designed for the RunCam Eagle v1 camera
52091sm.JPG  52091  Camera plate, RunCam Eagle v2  52091.STL  52091_Sketch  Fits all Pan Brackets shown in this catalog page. Designed for the RunCam eagle v2 camera
52095sm.JPG  52095  Camera plate, standard  52095.STL  52095_Sketch  Fits all Pan Brackets shown in this catalog page. Simple HD camera platform for Runcam2, Mobius, Foxeer Legend, etc.
52096sm.JPG  52096  Camera plate, 18mm mini  52096.STL  52096_Sketch  Fits all Pan Brackets shown in this catalog page. Designed to fit mini FPV cam by Eachine, etc.
52097sm.JPG  52097  Camera plate, 21mm mini  52097.STL  52097_Sketch  Fits all Pan Brackets shown in this catalog page. Designed to fit mini FPV cam by FatShark, etc.
52216sm.JPG  52216  Camera plate, 28mm  52216.STL  52216_Sketch  Fits all Pan Brackets shown in this catalog page. Designed to fit Foxeer Monster V3 (28mm wide with bracket), etc.


Servo Plates

 Image Part Number  Part Description Print File Drawing  Compatibility
52063sm.JPG  52063  Servo plate, geared, raised  52063.STL  52063_Sketch  Fits Turnigy RS5180MG servo or similar.
52098sm.JPG  52098  Servo plate, geared, flat  52098.STL  52098_Sketch  Fits Turnigy RS5180MG servo or similar.
52099sm.JPG  52099  Servo plate, angled  52099.STL  52099_Sketch  Fits Turnigy RS5180MG servo or similar. Servo only, no gearing.
52100sm.JPG  52100  Servo plate, flat, raised  52100.STL  52100_Sketch  Fits Turnigy RS5180MG servo or similar. Servo only, no gearing.
52111sm.JPG  52111  Servo plate, HD PnT, large  52111.STL  52111_Sketch  Fits GWS S125-1T 360 deg servo or similar.
52112sm.JPG  52112  Servo plate, HD PnT, small  52112.STL  52112_Sketch  Fits GWS S125-1T 360 deg servo or similar.
52116sm.JPG  52116  Deck plate, HD PnT  52116.STL  52116_Sketch  Replaces the bearing plate on the HD set-up. Allows a clean deck mount with the servo below.


Compact Pan & Tilt Parts

This build page for this Pan & Tilt also known as the "Simple Centered Pan & Tilt" can be found in the following article: Simple Centered Pan & Tilt



 Image Part Number  Part Description Print File Drawing  Compatibility
10038sm.JPG  10038  Compact PnT Servo Plate  10038.STL  10038_Sketch  Servo Mount, Deck Plate
47018sm.JPG  47018  Compact PnT Lower Bracket  47018.STL  47018_Sketch  Tilt Pivot
47019sm.JPG  47019  Compact PnT Camera Plate  47019.STL  47019_Sketch  Mobius, RunCam2, etc.


Misc Assembly Parts

 Image Part Number  Part Description Print File Drawing  Compatibility
2205sm.JPG  2205  Bearing plate, HD-PnT  2205.STL  2205_Sketch  Carries and supports the 0.375"ID x 0.625"OD x 0.156"T bearing.
52064sm.jpg  52064  Light weight PnT deck spacer, 5mm  52064.STL  52064_Sketch  Supports all non-HD servo plates.
52080sm.JPG  52080  Pan turret, HD-PnT, short  52080.STL  52080_Sketch  Creates a simple Pan only on the HD unit.
52082sm.JPG  52082  Servo coupler, HD-PnT  52082.STL  52082_Sketch  Connects GWS servo to Yaw plate assembly or simple cam plate.
52109sm.JPG  52109  Upper yaw bracket coupler  52109.STL  52109_Sketch  Attaches to 52094, Pan bracket to make assembly.
52113sm.JPG  52113  Cam plate, geared PnT, 4 degree  52113.STL  52113_Sketch  Replaces tilt parts on geared PnT. Makes a "Pan only" set-up.
52114sm.JPG  52114  Pinion gear mount, geared PnT  52114.STL  52114_Sketch  Main component of geared pinion assembly.
52115sm.JPG  52115  Pan turret, HD-PnT, tall, 4 degree  52115.STL  52115_Sketch  Creates a simple Pan only camera deck on the HD unit. This deck is angled to 4 degrees.
52067sm.JPG  52067  RunCam Split v1 PCB Cover, Top  52067.STL  52067_Sketch  Pair with 52062 camera plate for RunCam Split v1
52076sm.JPG  52076  RunCam Split v1 SD Card Cover  52076.STL  52076_Sketch  Pair with 52062 camera plate for RunCam Split v1. Snaps into 52067 top cover
52135sm.jpg  52135  RunCam Split v2 PCB Cover, Top  52135.STL  52135_Sketch  Pair with 52062 camera plate for RunCam Split v2


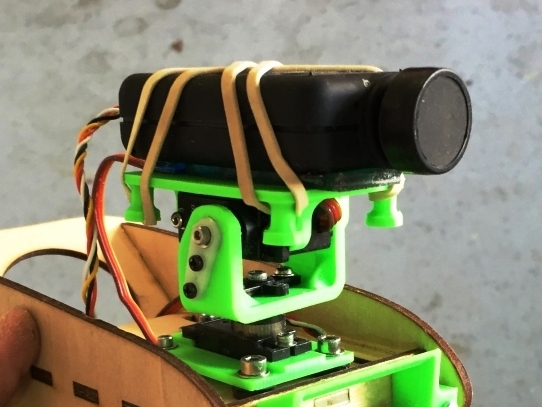

Typical Assemblies

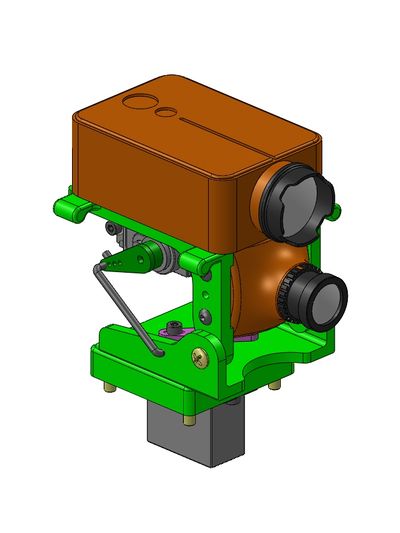

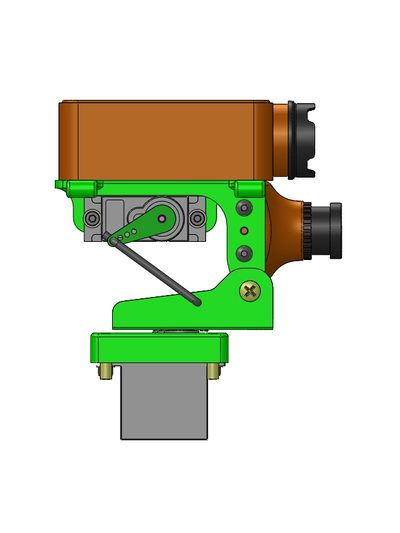

Simple Pan and Tilt

PnT81.JPG PnT82.JPG

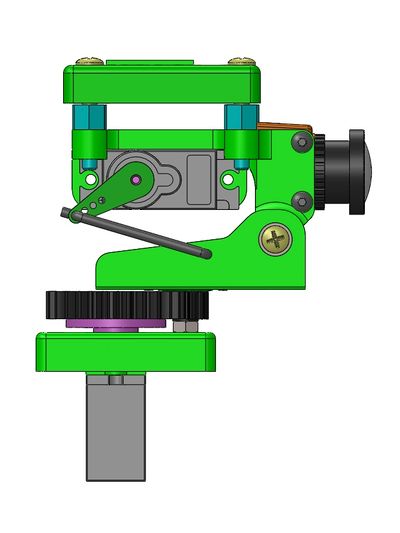

Geared Pan and Tilt

PnT85.JPG PnT86.JPG

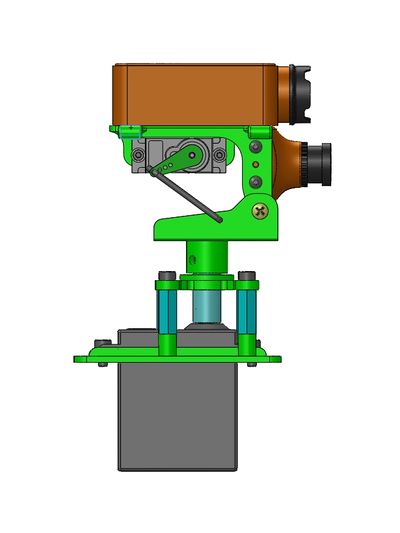

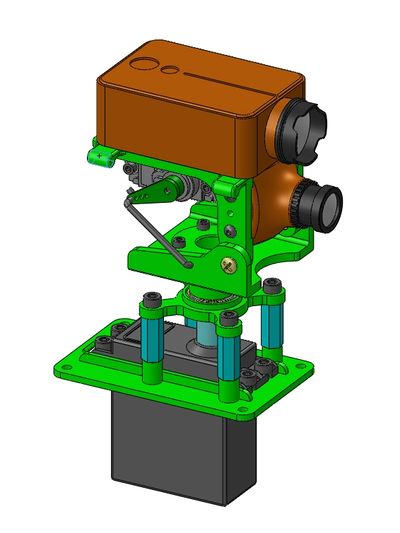

Heavy Duty Pan and Tilt

PnT83.JPG PnT84.JPG
