Forward Offset Pan & Tilt

From ItsQv
Jump to: navigation, search

Gimbals
February 2016

  Simple 9g Servo Pan & Tilt

Introduction

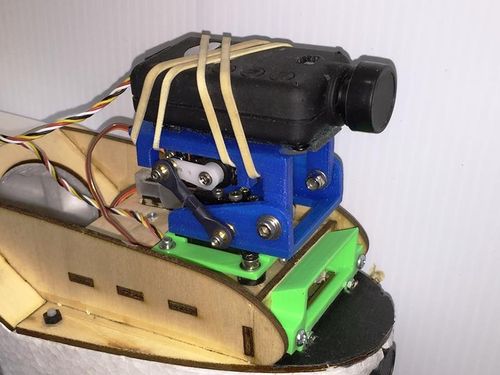

After building the Simple Pan & Tilt gimbal I saw that it would be nice to get some forward shift as the camera tilted down. So, I took the models from that small project and modified them to get some forward shift. With the addition of a linkage, this set-up is not as "solid" as the centered version but it seems to work OK.

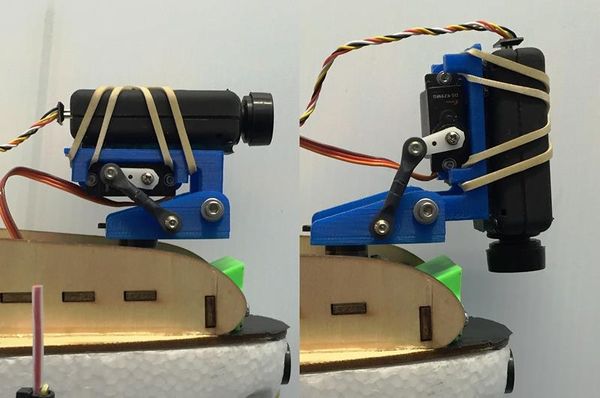

Tilt movement


Printed Parts

Base servo plate


Lower 'U' bracket


Camera Plate


Parts List

Servos & Hardware

2ea 9 gram x 2Kg Servos, 1 modified for 180 degree travel
4ea M2x6 socket head cap screws
4ea M2 flat washers
4ea #1 x 1/8" flat head sheet metal screws
Align PJ Gel Pad (optional)
Small wire ties

3D Prints

Camera Mount Plate - PnT2_Camera_Plate_v01
Yaw Bracket - PnT2_Lower_Bracket_v01
Yaw Servo Mount Plate - PnT_Servo_Bracket

Tools needed

1.5mm ball end driver (allen wrench)
Phillips head screwdriver
2mm tap and tap drill

Camera

Mobius with lens '2C' modified for vertical mount

Files

Here are the print files if you would like to give this a try. The zip contains the printable pieces and image files, simply richt-click the link and select "Save Target" for the download. If you would like the native SolidWorks files, please drop me a line (below) and I will accomodate.

Mobius Offset Pan and Tilt v2 ZIP

Comments? Questions?

email me!
