Motrofly 2610-1100 Outrunner

From ItsQv
Jump to: navigation, search

Motors
March 2011

Drive System Information and Test Results
Catalogue Information
Supplier Site



Test Results

Test results are done "On the bench" using the Medusa Research Power Analyser Pro data acquisition module with a bench mounted test stand. Run times vary depending on the power range and motor type. Data sampling either follows a ramp up to full (100%) power or a step and hold function at 0, 25, 50, 75 & 100% Throttle. System power is provided by a common flight battery pack and is used, without re-charge, for several tests. All summary results are "best case" average or stable at the given measure.

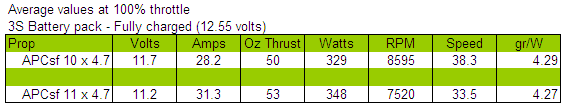

Data Values

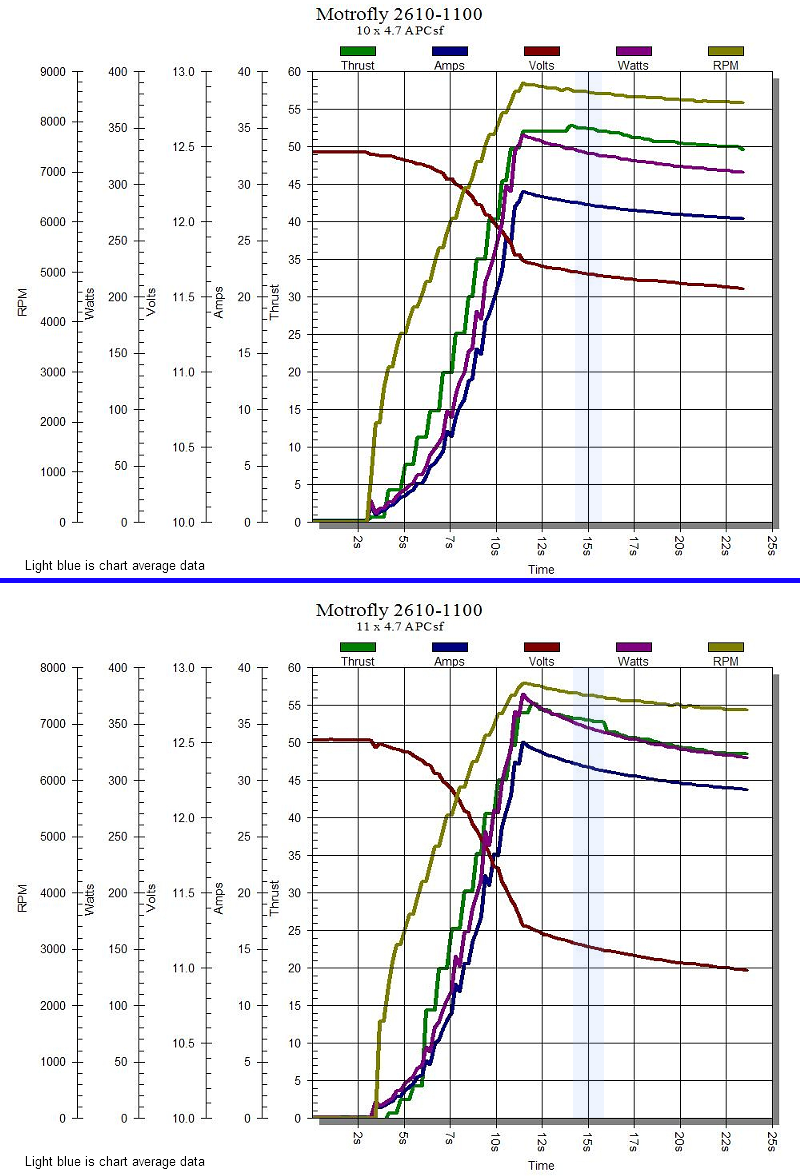

Chart represents collected data on two Slow Fly APC propellers.

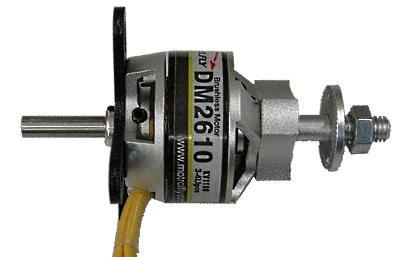

As tested weight - 94.2 grams
Includes X mount, shaft collar and prop adapter with prop nut and washer.

Tested Kv - 982 RPM/v
RPM Value at 10.0 volts
