E-Flite Park 400-920

From ItsQv
Jump to: navigation, search

Motors
August 2012

Drive System Information and Test Results

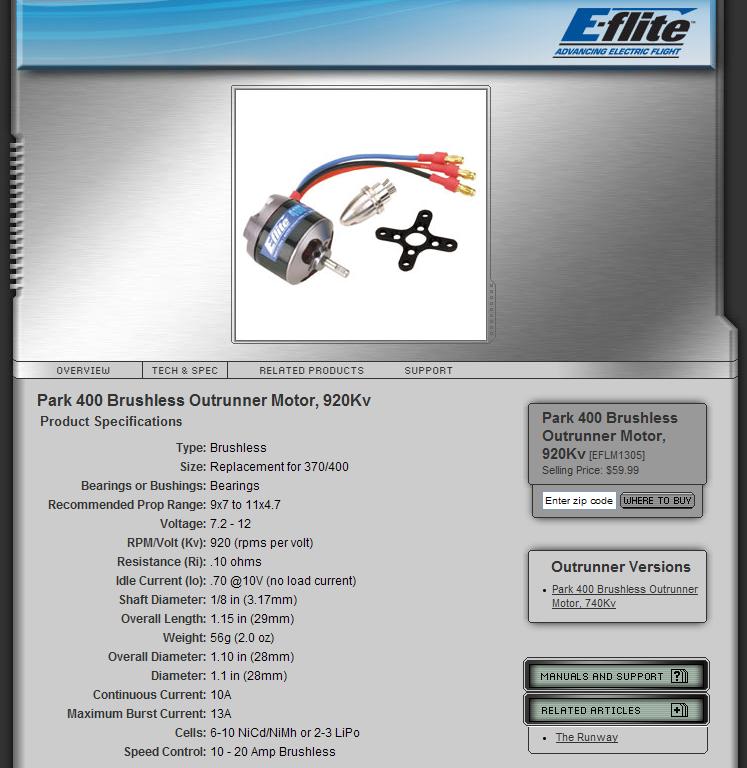

Catalogue Information
Supplier Site

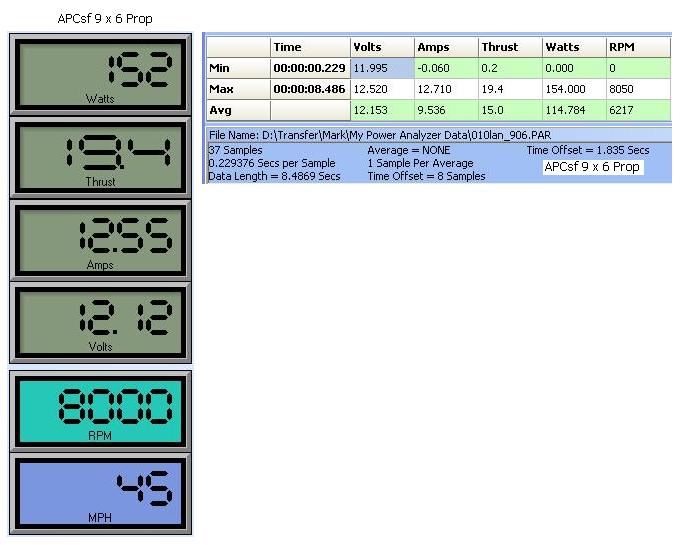

Test Results

Test results are done "On the bench" using the Medusa Research Power Analyser Pro data acquisition module with a bench mounted test stand. Run times vary depending on the power range and motor type. Data sampling either follows a ramp up to full (100%) power or a step and hold function at 0, 25, 50, 75 & 100% Throttle. System power is provided by a common flight battery pack and is used, without re-charge, for several tests. All summary results are "best case" average or stable at the given measure.



Data Chart

Chart represents collected data on the 12 x 8 Turnigy Wood propeller
