Balsa Products BP3520-7

From ItsQv
Jump to: navigation, search

Motors
August 2008

Drive System Information and Test Results
Catalogue Information
Supplier Site

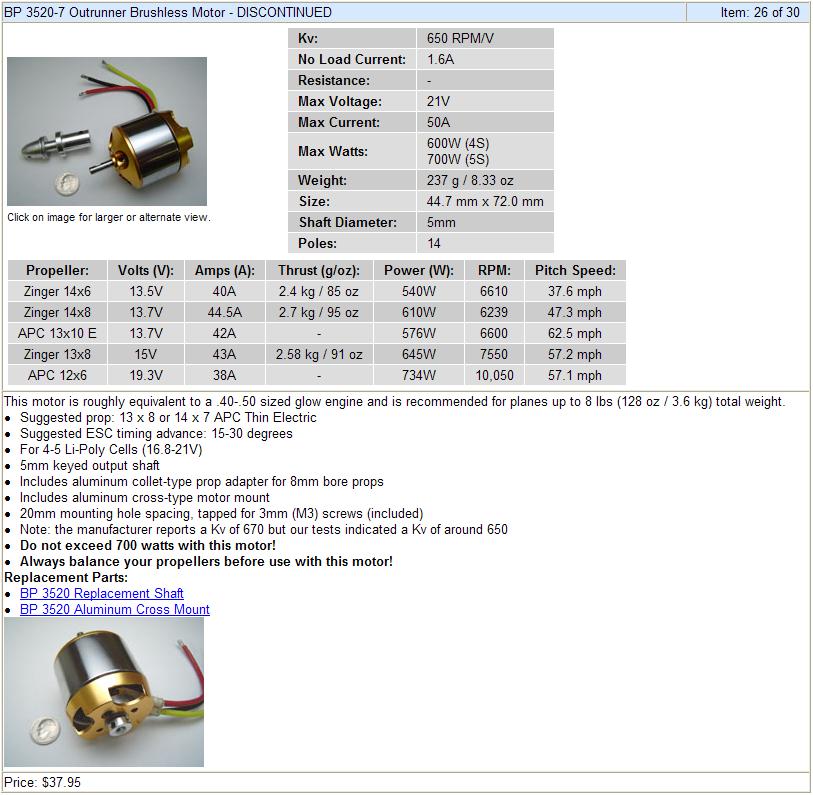

BP3520-7 cat.jpg


Test Results

Test results are done "On the bench" using the Medusa Research Power Analyser Pro data acquisition module with a bench mounted test stand. Run times vary depending on the power range and motor type. Data sampling either follows a ramp up to full (100%) power or a step and hold function at 0, 25, 50, 75 & 100% Throttle. System power is provided by a common flight battery pack and is used, without re-charge, for several tests. All summary results are "best case" average or stable at the given measure.

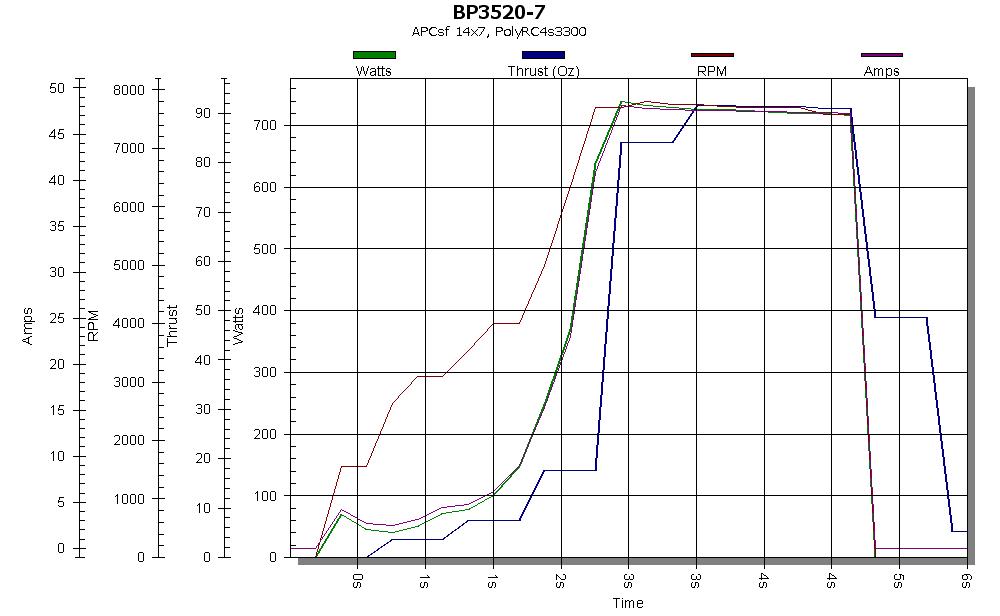

BP3520-7 graph.jpg

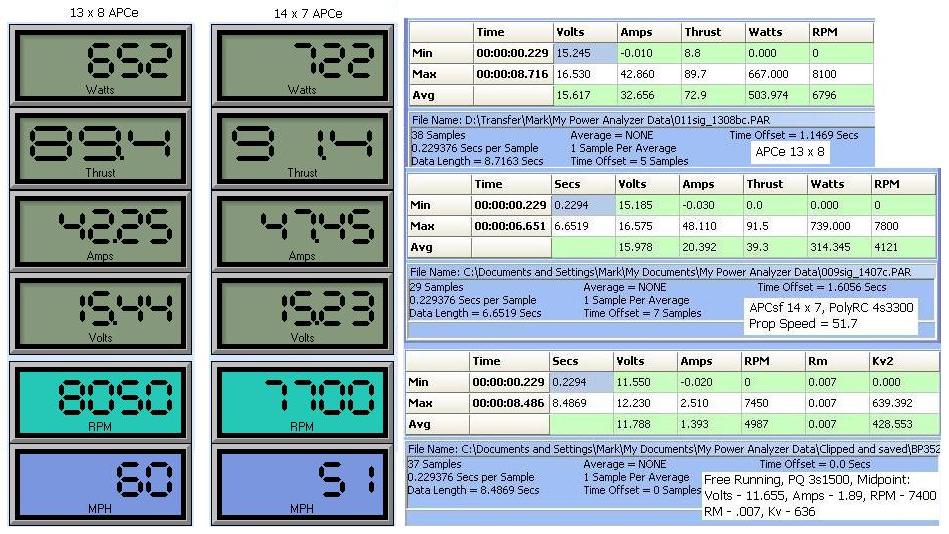

Results Snapshot

BP3520-7 snap.jpg
