Full Length Low Profile Canopies

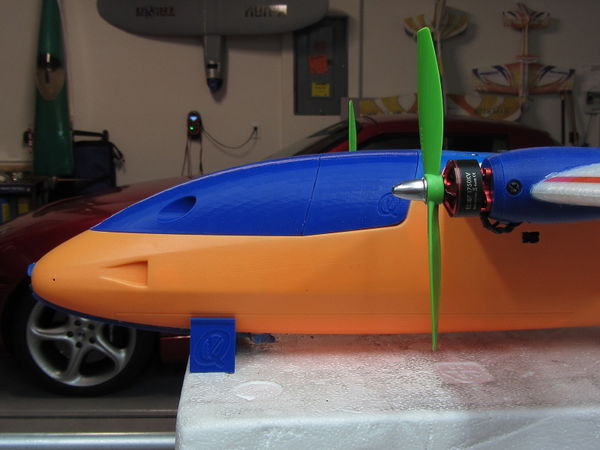

Two piece swoopiness!

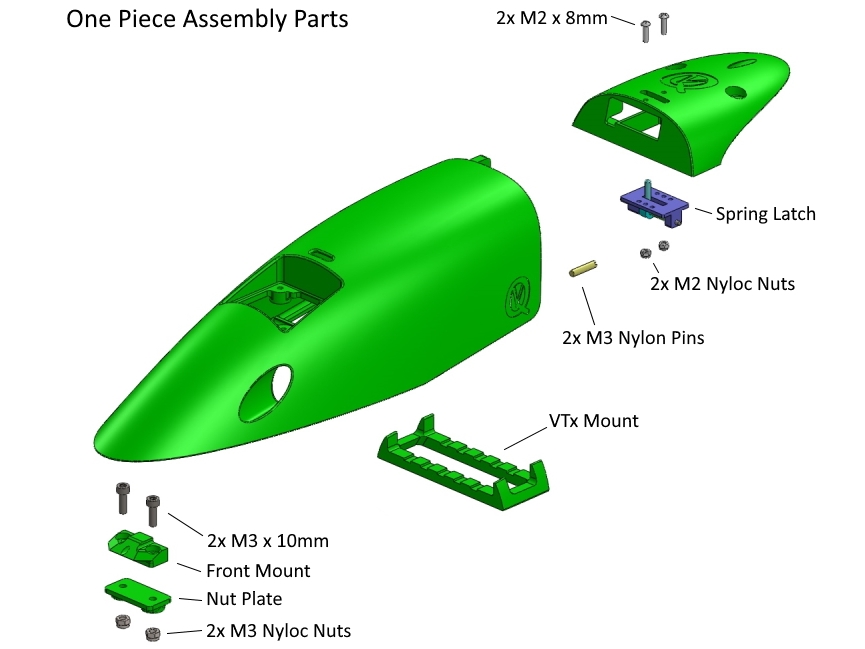

Below are the parts to put together a one-piece full length canopy or a two-piece full length canopy (shown above). There is also a short list of a few Pan & Tilt parts to fit the PnT mount shown. If you elect to go with the full length, one piece canopy, you will need the ability to print quality, large parts on a print bed of 200mm x 200mm minimum. These canopies work with the tall, printed single motor set-up or the twin motor set-up.

All parts shown below have been test printed in PLA at .2mm resolution and weights shown are estimates.

Image	Part Number	Part Description	Weight	Print File	Compatibility Notes
	52238	Full Length, Low Profile Canopy, Plain	64g	52238.STL	Needs 52246 Low Profile Front Wing Mount, Latching (below)
	52239	Full Length, Low Profile Canopy, for PnT	67g	52239.STL	Needs 52246 Low Profile Front Wing Mount, Latching (below)
	52240	Full Length, 2PC Front Low Profile, Plain	42g	52240.STL	Plain front section. Cut-to-fit your camera(s)
	52241	Full Length, 2PC Front Low Profile, PnT	44g	52241.STL	Front section with PnT 4 bolt mount
	52242	Full Length, 2PC Rear Low Profile Canopy	28g	52242.STL	Fits both front sections, 52240 & 52241
	52243	Full Length, Low Profile Canopy, Front Mount	2.5g	52243.STL	Front mount for the 52238, 52239, 52240 & 52241 canopies
	52244	Full Length, Low Profile Canopy, Front Mount Nut Plate	1.8g	52244.STL	Nut plate for front mount piece
	52245	Low Profile Front Wing Mount, Plain	15g	52245.STL	For use with the 2 piece canopy (no latch)
	52246	Low Profile Front Wing Mount, Latching	15g	52246.STL	Can be used for either 1 piece or 2 piece canopies

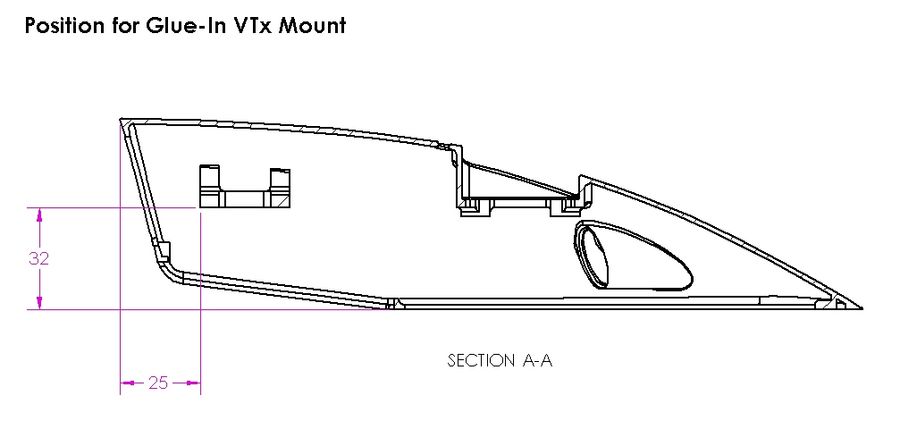

	52247	Glue-In VTx mount	7g	52247.STL	See Mount Drawing for position information
