Brushless Roll Gimbal

© Mark Qvale - November, 2018

Contents 1 Introduction 1.1 Electronics 1.2 Print Parts 2 Typical Assemblies 2.1 Details 2.2 Mini Talon Forward Mount 2.3 Stratosurfer Low Profile Mount 3 See Also 3.1 Comments? Questions?

Introduction

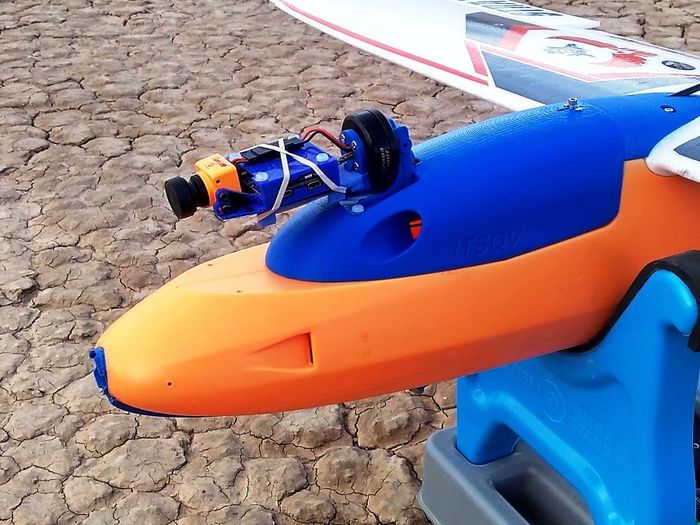

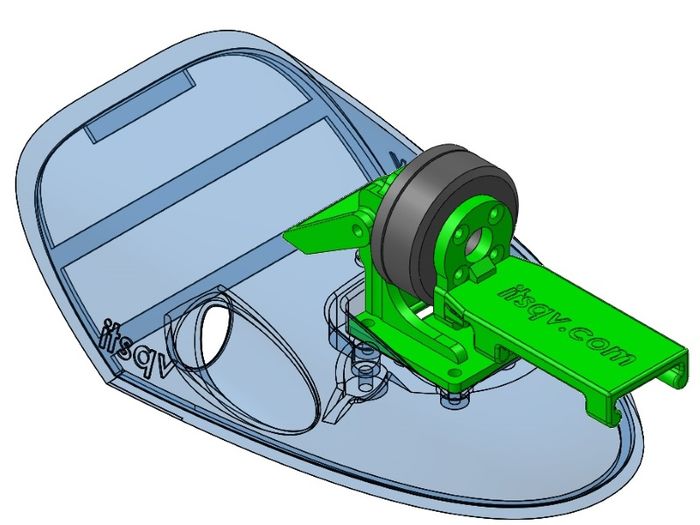

In this catalog of parts are components needed to make a brushless single axis roll gimbal. There are notes on compatibility and some pieces with sketches for more information. This roll gimbal fits both my Mini Talon & Stratosurfer canopies as well as any other flat plate mount.

Electronics

Motors Used

RCTimer GBM2804 hollow shaft Brushless Gimbal Motor (shown)
Multistar 1807-340Kv Brushless Gimbal Motor

Controllers Used

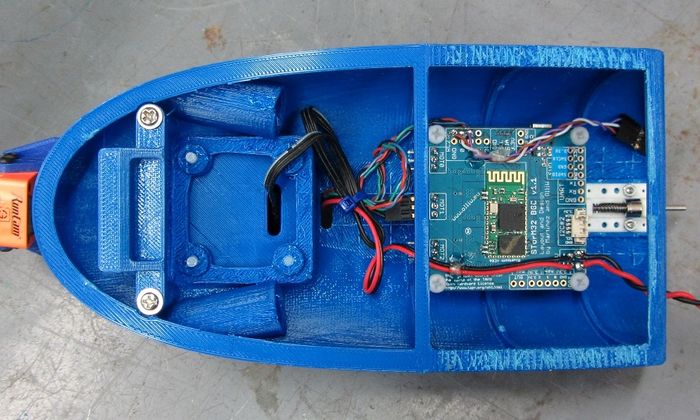

Storm32 v1.1 Brushless Gimbal Controller
RTF Mini Brushless Gimbal Controller

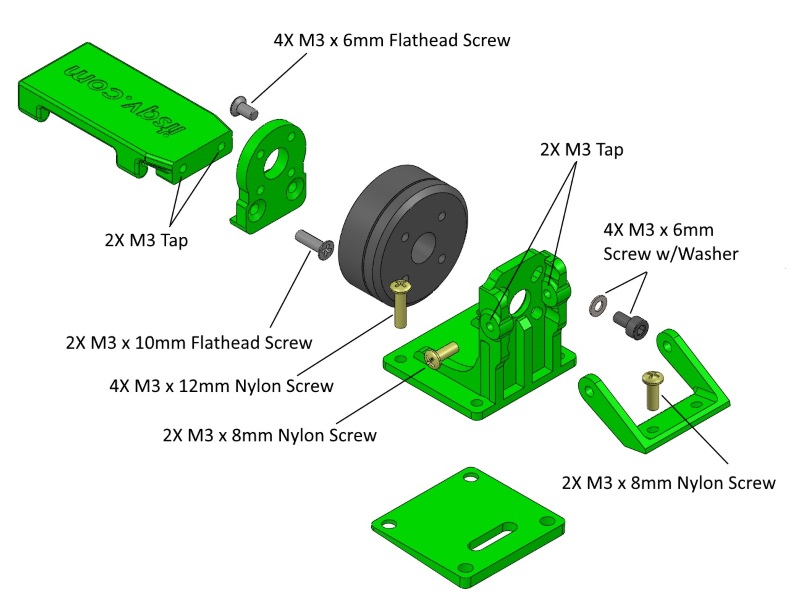

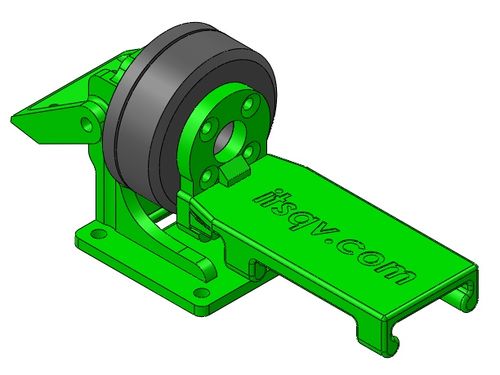

Print Parts

Image	Part Number	Part Description	Print File	Drawing	Compatibility
	52083	Roll Mount Upright	52083.STL	52083_Sketch	Fits canopies for Mini Talon and Stratosurfer. See part sketch for mount hole spacing.
	52013	Motor mount, 16mm	52013.STL	52013_Sketch	Fits motors with 16mm bolt circle
	52187	Motor mount, 12mm	52187.STL	52187_Sketch	Fits motors with 12mm bolt circle
	52011	Camera plate	52011.STL	52011_Sketch	Supports Mobius, Mini Mobius, RunCam, Runcam Split, etc.
	10036	Upright brace, long	10036.STL	10036_Sketch	Fits Mini Talon rear mount canopy
	10037	Upright brace, Short	10037.STL	10037_Sketch	Fits Mini Talon front mount canopy
	10038	Upright brace, Stratosurfer	10038.STL	10038_Sketch	Fits Stratosurfer long LP canopy
	52184	Upright tilt plate, 4 degree	52184.STL	52184_Sketch	Fits all 4-bolt canopy mounts
