Turnigy SK4250-650
From ItsQv
July 2008
Drive System Information and Test Results

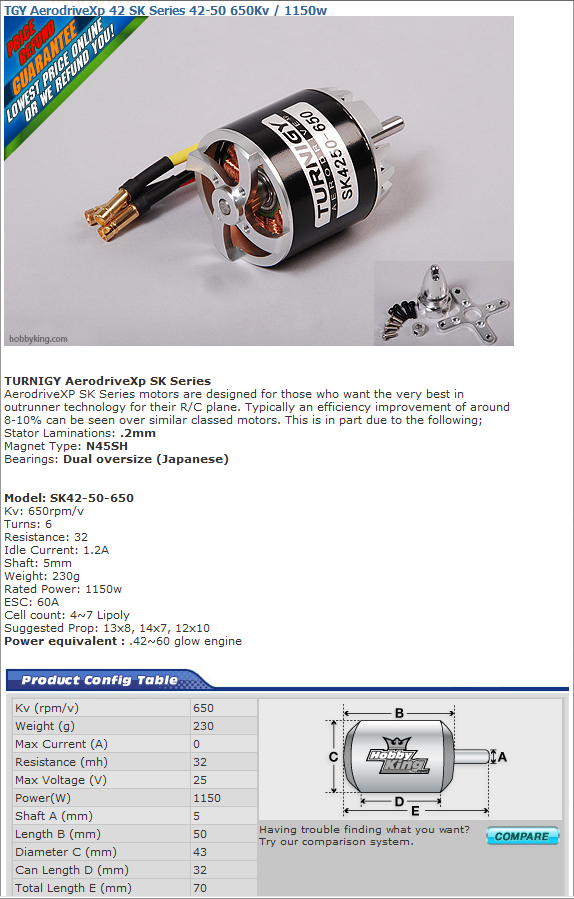

Catalogue Information
Supplier Site

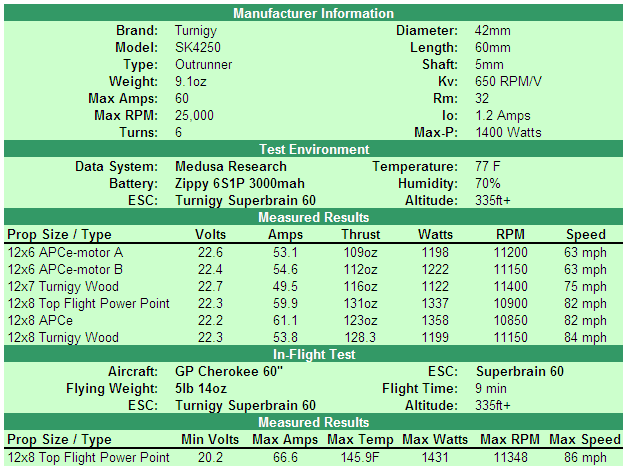

Test Results
Test results are done "On the bench" using the Medusa Research Power Analyser Pro data acquisition module with a bench mounted test stand. Run times vary depending on the power range and motor type. Data sampling either follows a ramp up to full (100%) power or a step and hold function at 0, 25, 50, 75 & 100% Throttle. System power is provided by a common flight battery pack and is used, without re-charge, for several tests. All summary results are "best case" average or stable at the given measure.

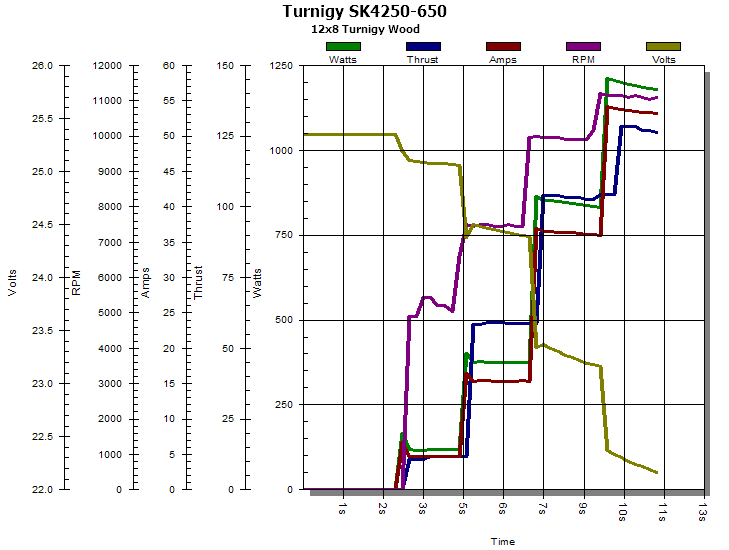

Data Chart
Chart represents collected data on the 12 x 8 Turnigy Woop propeller.
